Equipped with advanced control systems and precision tooling, Haolilai Machinery ensures stable bending angles, smooth curves, and minimal deformation, meeting strict industrial standards.
Our pipe bending machines can process stainless steel, carbon steel, aluminum, copper, and more. Flexible configurations allow handling different diameters and thicknesses for diverse production needs.
With durable components and optimized mechanical structure, our machines provide reliable operation, high efficiency, and reduced downtime, helping improve your productivity.
We offer customized machine designs, tooling, and technical support based on your pipe specifications and production requirements, ensuring the best solution for your business.
| Maximum bending capacity of carbon steel pipe (OD × thickness) / mm | ￠38 × 2.0t |
| Maximum bending capacity of stainless steel pipe (OD × thickness) / mm | ￠32 × 1.5t |
| Bending radius range / mm | 50 – 180 |
| Bending angle range / degree | 0 – 190 |
| Height of mold center from ground / mm | 1200 |
| Number of parts that can be stored / pieces | 1000 |
| Data input method | Input coordinate value X.Y.Z or processing value (Y.B.C) |
| Maximum mandrel effective distance / mm | 2000 |
| Maximum feeding stroke / mm | 1800 |
| Bending speed / Deg/sec | Adjustable |
| Bending accuracy / degree | ±0.1 |
| Oil pump motor power / kW | 4.5 |
| Feeding servo motor power / kW | 1 |
| Feeding speed / mm/sec | 200 – 1000 (adjustable) |
| Feeding precision / mm | ±0.1 |
| Rotating servo motor power / kW | 0.75 |
| Rotating speed / Deg/sec | 180 (adjustable) |
| Rotating precision / degree | ±0.1 |
| Bending servo motor power / kW | 4.4 |
| Bending precision / degree | ±0.1 |
| Touch screen / inch | 10.4 |
| Hydraulic system pressure / MPa | 12 |
| Machine dimensions / mm | 3500 × 840 × 1200 |
| Machine weight / KG | 1300 |

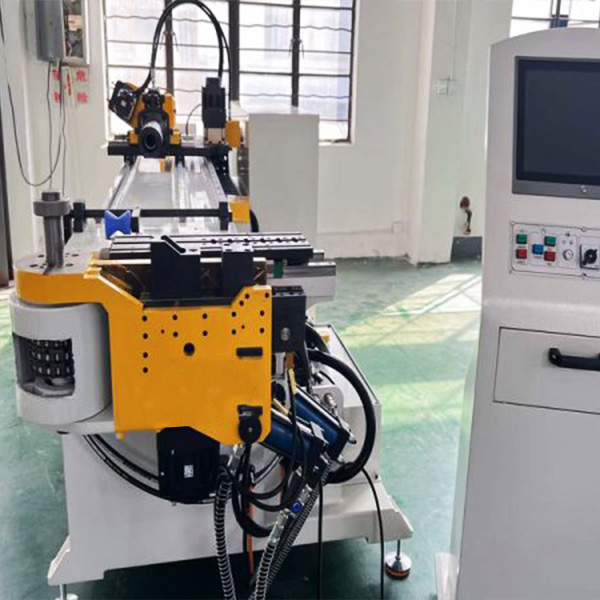

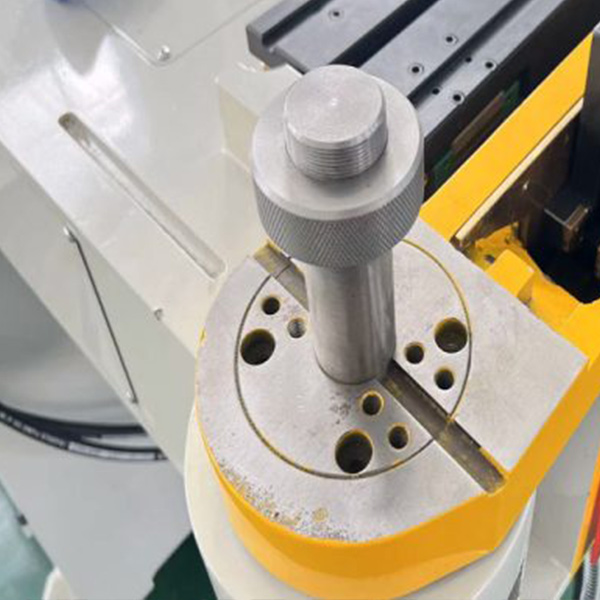

Machine head

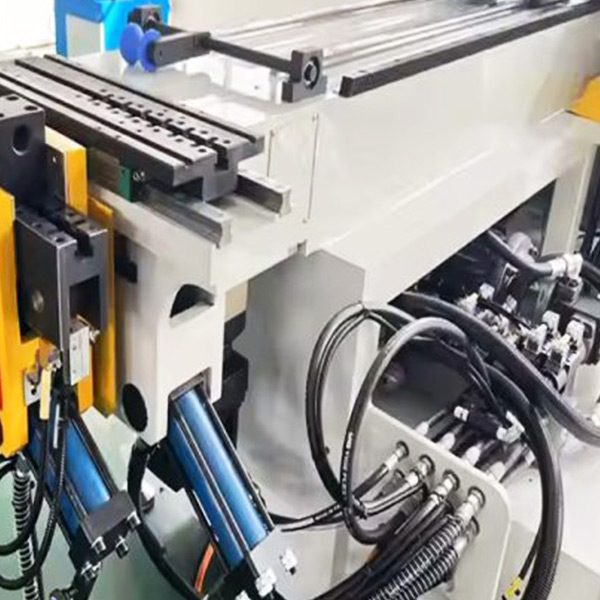

Hydraulic clamping cylin
Mold

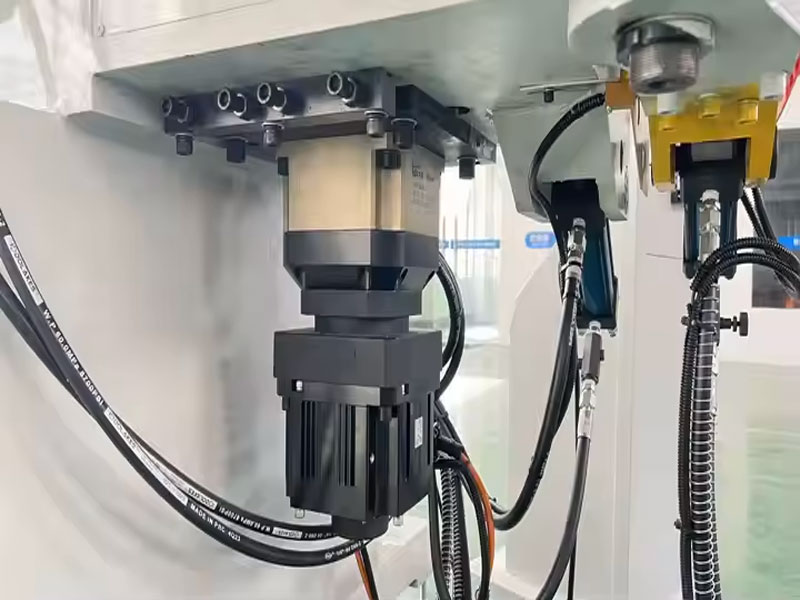

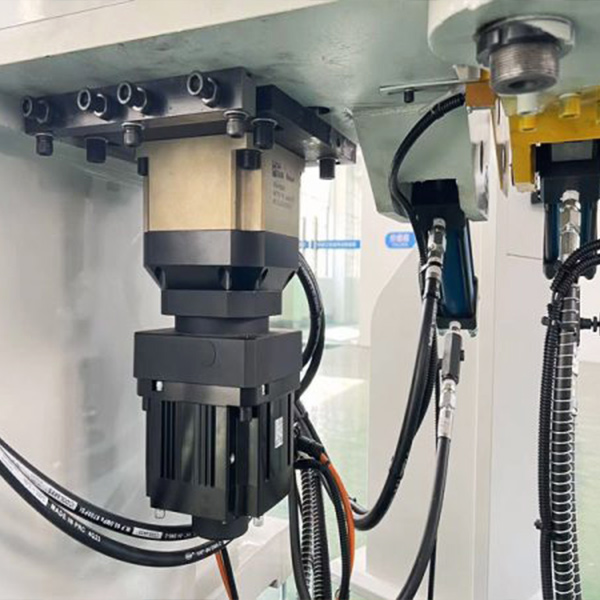

Mitsubishi Servo Motor
The bending is drived by servo motor. It is with high efficiency, accurate bending angle and feeding.

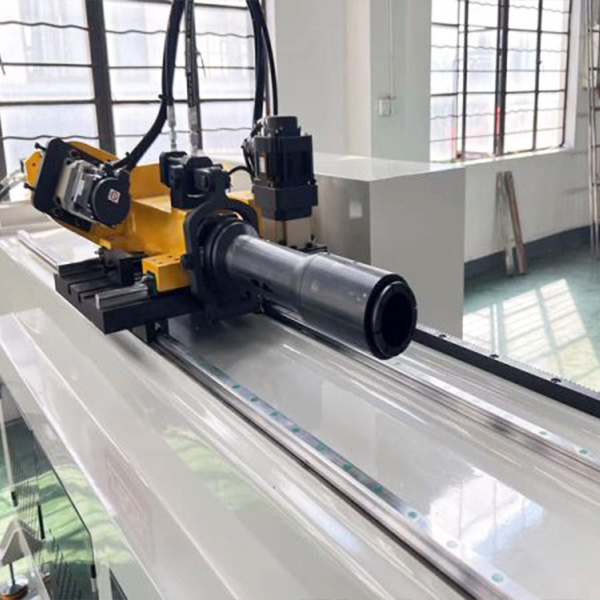

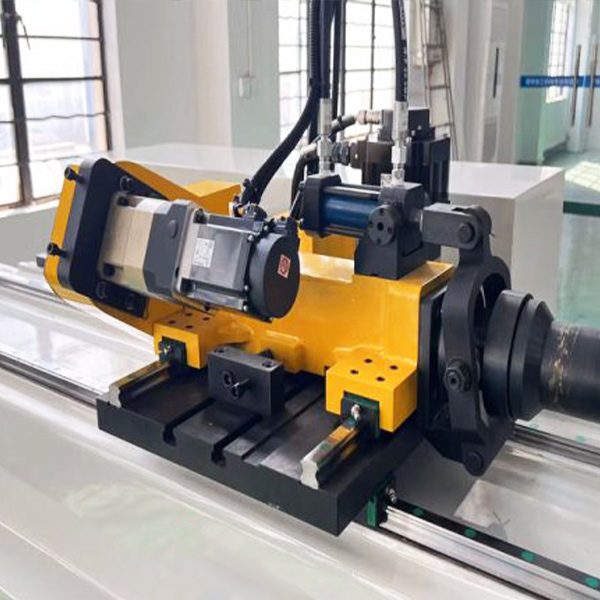

Gripping fixture

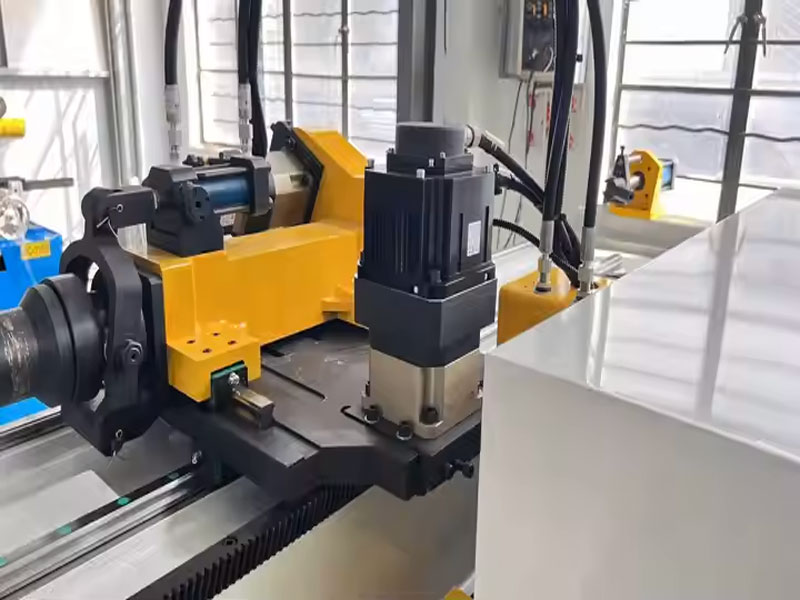

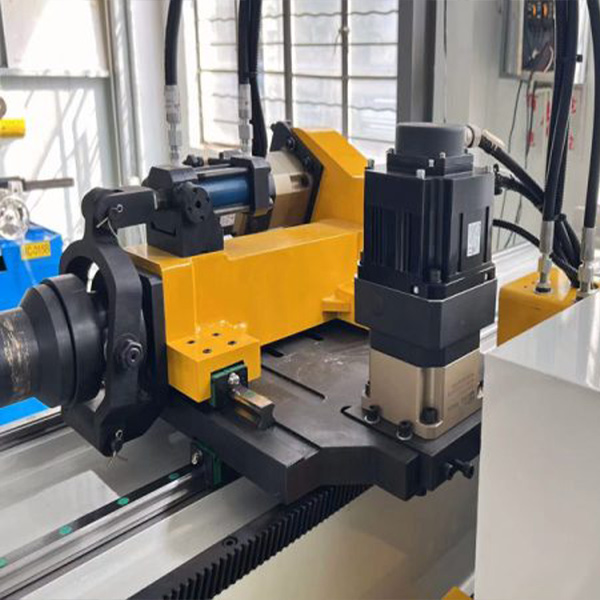

Mitsubishi Servo Motor
The feeding and rotary are driven by a servo motor. It has high efficiency, accurate bending angle, and feeding.
Mitsubishi Servo Motor
The feeding and rotary are drived by servo motor. It is with high efficiency, accurate bending angle and feeding

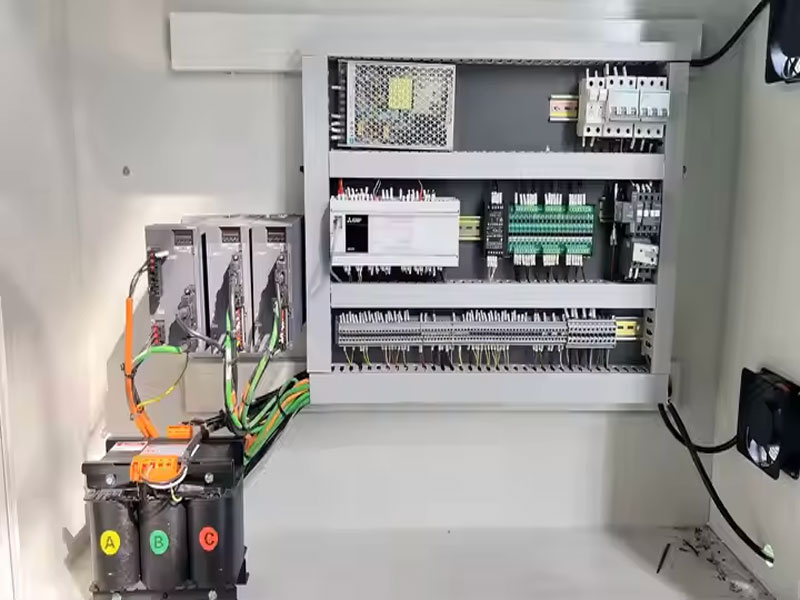

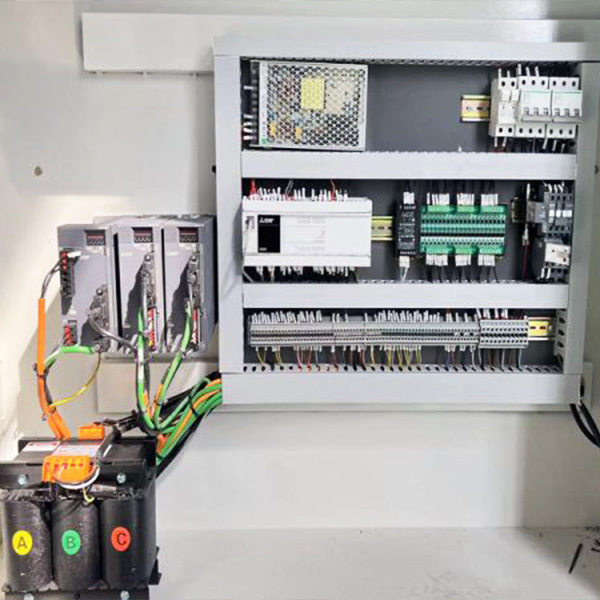

Electrics
Schneider,France brand

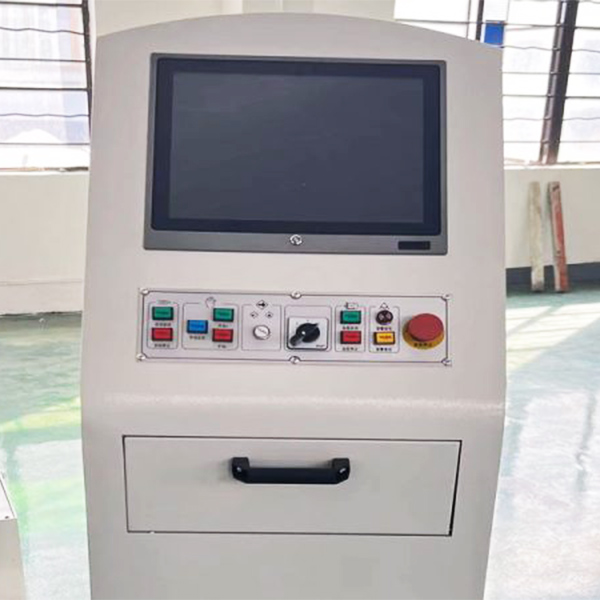

PLC Controller
A pipe per bending all individually preparing five action sequences and 10 sections of speed, allows the operator to match the use, reduce the fitting interference
Welcome to our production workshop, which is equipped with advanced CNC machining equipment, fully automatic welding line and efficient assembly line to fully guarantee the precision and quality of each pipe bender. Standardised production processes, clean and orderly working environment and strict quality inspection system is the solid backing for the stability and reliability of our products. Through the real scene display, let you feel our manufacturing strength and professional attitude.
