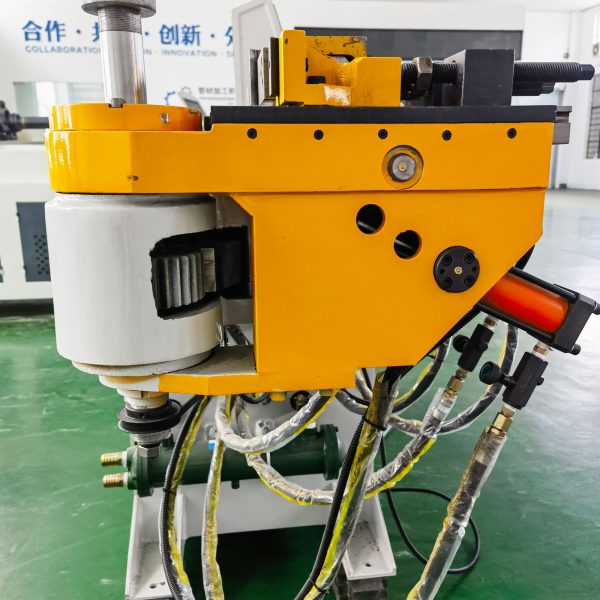

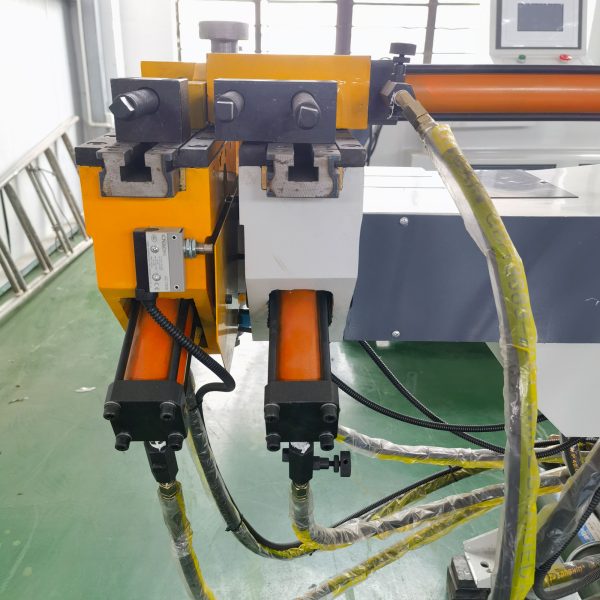

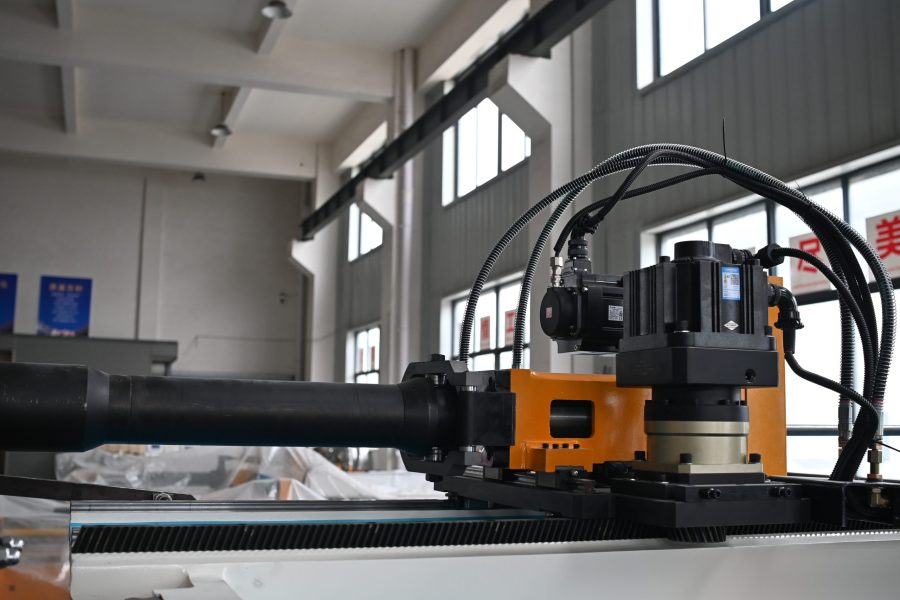

The machine features a rotary arm direct clamping structure, ensuring rigid pipe fixation and high positional accuracy throughout the bending cycle. A hydraulic guide plate–assisted feeding mechanism enhances thrust stability and minimizes deviation during material advancement.

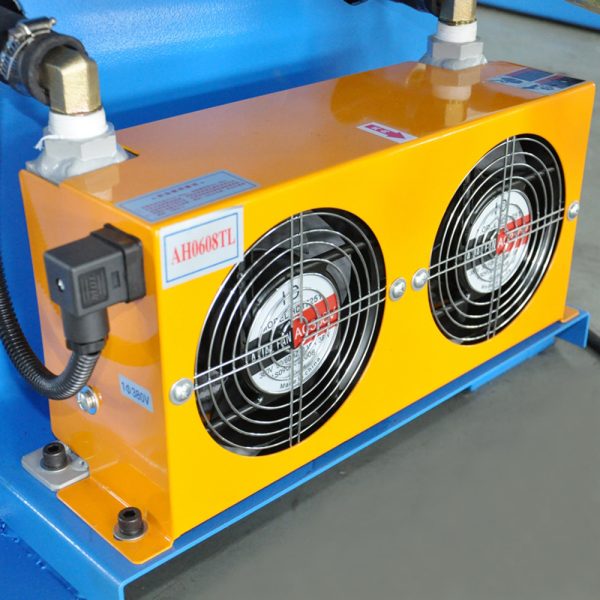

The hydraulic system is equipped with an integrated water-cooling unit, enabling effective oil temperature control during continuous operation and improving overall system reliability and service life.

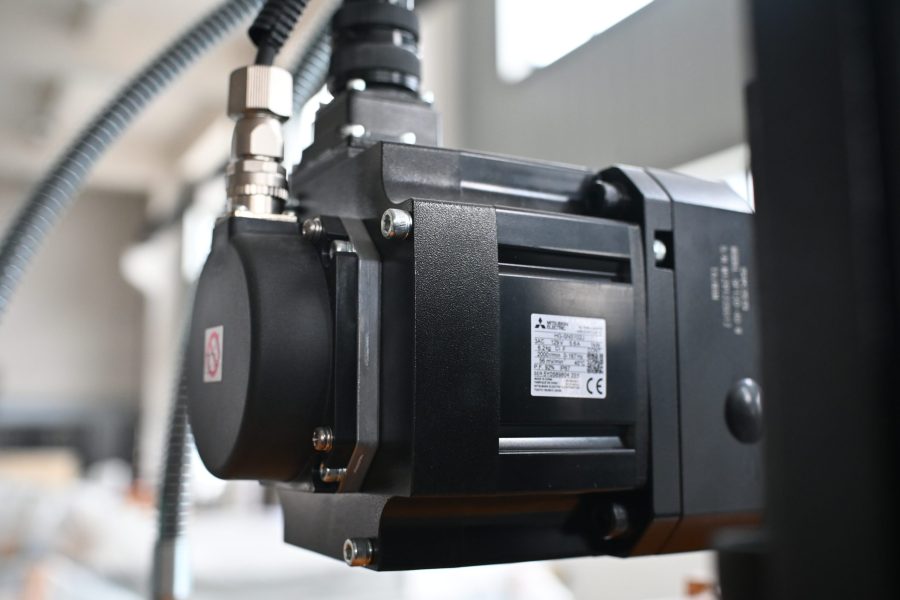

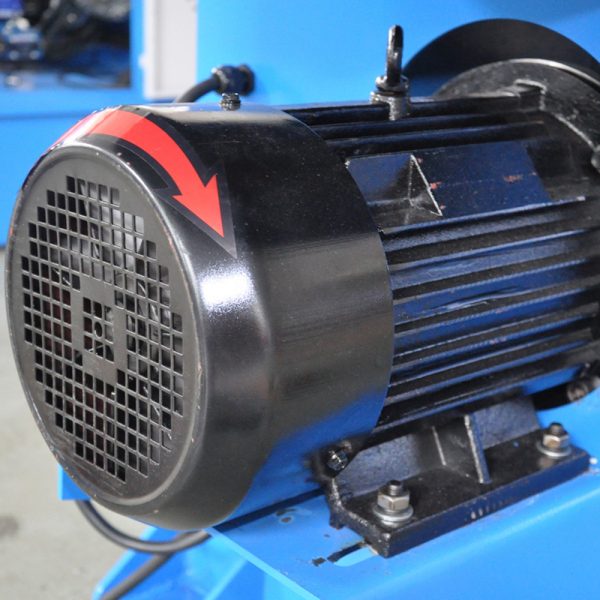

The main drive adopts a chain or rack-and-pinion transmission structure, delivering stable torque output and precise motion control. From a top-view perspective, the pipe bending direction is clockwise, and the rotation movement follows the bending orientation to ensure consistent forming
Equipped with advanced control systems and precision tooling, Haolilai Machinery ensures stable bending angles, smooth curves, and minimal deformation, meeting strict industrial standards.
Our pipe bending machines can process stainless steel, carbon steel, aluminum, copper, and more. Flexible configurations allow handling different diameters and thicknesses for diverse production needs.
With durable components and optimized mechanical structure, our machines provide reliable operation, high efficiency, and reduced downtime, helping improve your productivity.
We offer customized machine designs, tooling, and technical support based on your pipe specifications and production requirements, ensuring the best solution for your business.

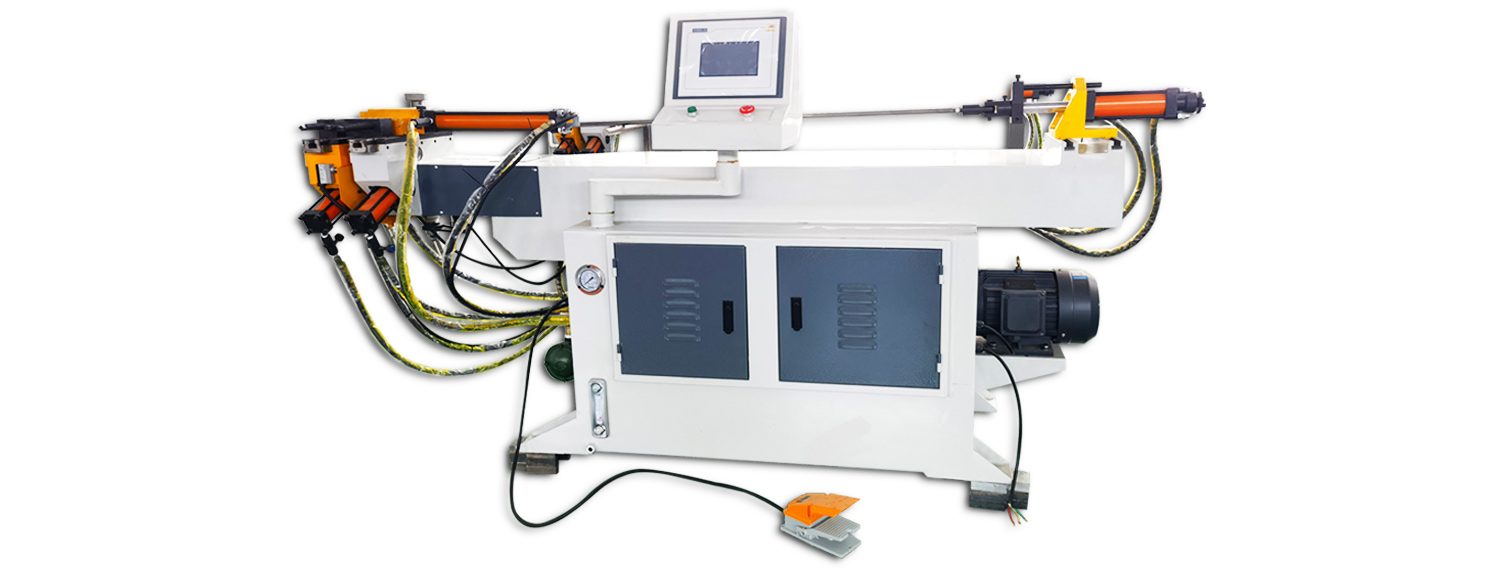

| Parameter / Heading | DW38NC |
| Maximum Bend Diameter (mm) | Φ38 × 2 |
| Maximum Bending Radius (mm) | R260 |
| Maximum Bending Angle (°) | 190 |
| Mandrel Length (mm) | 2500 |
| Motor Power (kW) | 4 |
| Machine Weight (kg) | 800 |
| Machine Size (mm) | 2200 × 600 × 1200 |

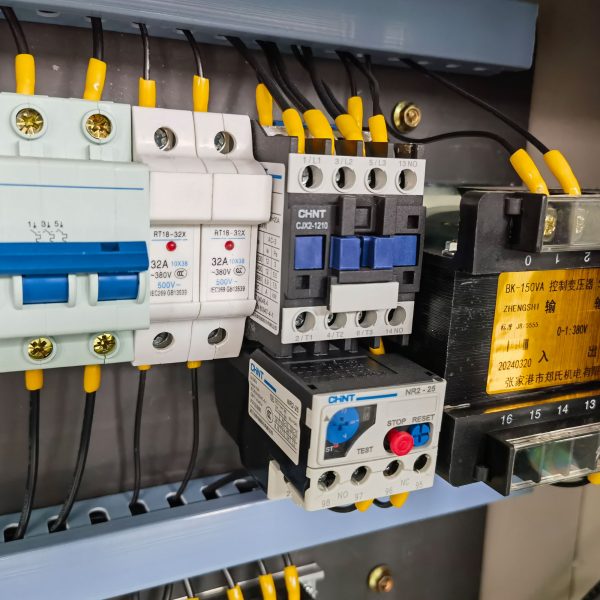

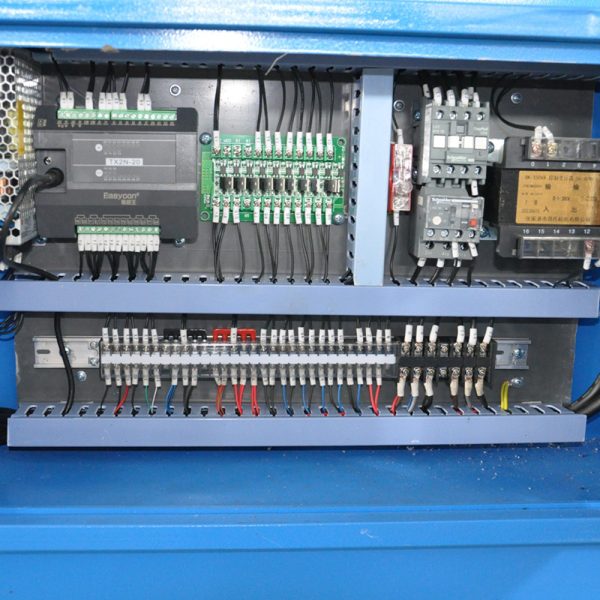

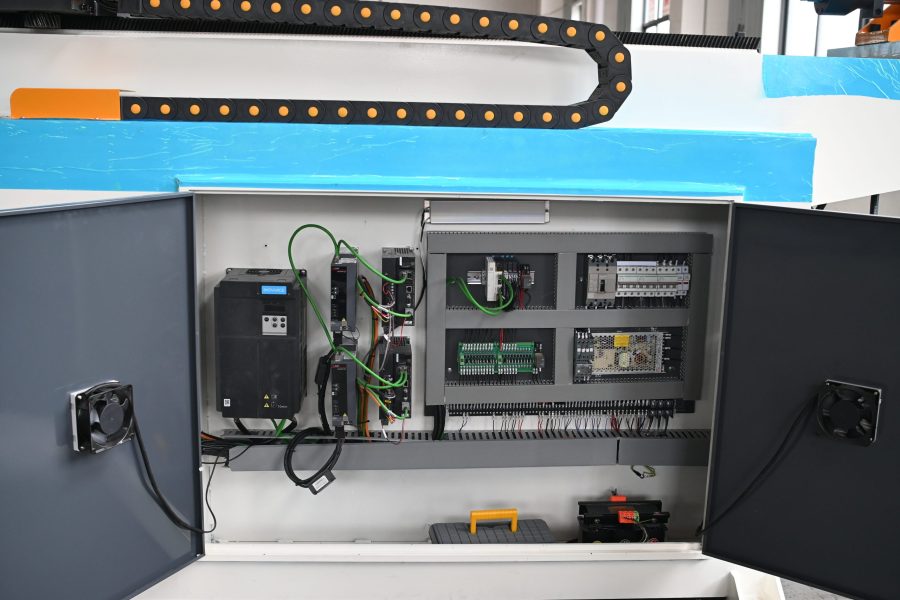

Electrical control and operation interface requirements

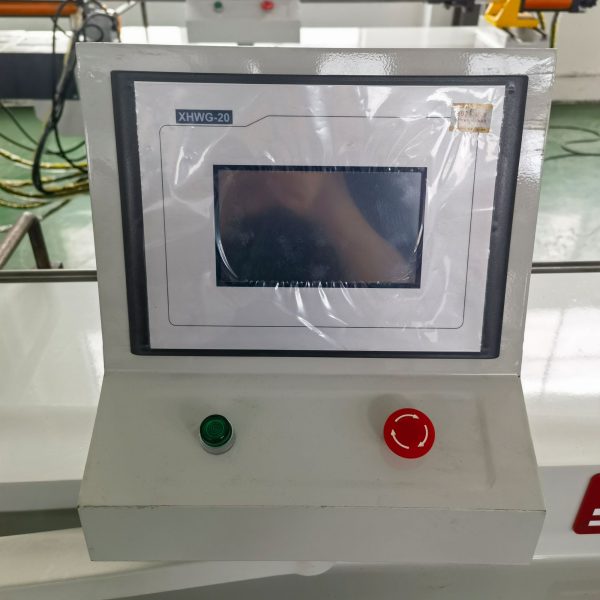

● The operation interface adopts button control screen
● Digital display resolution: bending angle 0.1°
● The control system can store 20*14 processing data
● Bending parameters can be set on the operation interface
Tube Bending Process
● The equipment operates strictly according to the provided drawings, ensuring the manufactured product meets or exceeds the quality of the original sample, with bending deformation controlled within 5%.
● Tube samples can be provided as needed for mold fabrication.
● The surface of bent sections is free of wrinkles, ensuring both precision and appearance.
● After bending, the tube surface remains smooth without grooves or noticeable dents, maintaining material integrity.
Equipment Performance
● The machine allows direct input of all bending parameters for precise pipe processing.
● It supports multiple operating modes including cycle, half-cycle, manual, and pause. The next cycle can be started via the switch, and the emergency stop button ensures immediate halting when necessary.
● The operation interface is fully in English for user convenience.
● Energy storage supports up to 20 workpieces, with each workpiece programmable for 14 bending parameters.
● Bending data can be directly input and edited on the interface for flexible operation.
● Transportation Industry: Locomotive, automobile, and bicycle exhaust pipes, brake and oil supply pipes, steering gears, air conditioning pipes, seats, balancers, bumpers, window frames, handlebars, and structural frames.
● Furniture Industry: Indoor and outdoor tables and chairs, office desks and chairs, shelves, beds, and other furniture components.
● Leisure Industry: Fitness equipment, strollers, amusement park facilities, and recreational products.
● Heating and Cooling Industry: Water heaters, electric heaters, gas stoves, refrigerators, air conditioners, and related piping.
● Heavy Industry: Boiler piping, power plants, chemical plants, diesel engines, shipbuilding, and other industrial piping systems.
● Other Industries: Household goods, rehabilitation and medical equipment, sanitary equipment, construction and decoration, agriculture, and aviation applications.
Welcome to our production workshop, which is equipped with advanced CNC machining equipment, fully automatic welding line and efficient assembly line to fully guarantee the precision and quality of each pipe bender. Standardised production processes, clean and orderly working environment and strict quality inspection system is the solid backing for the stability and reliability of our products. Through the real scene display, let you feel our manufacturing strength and professional attitude.
