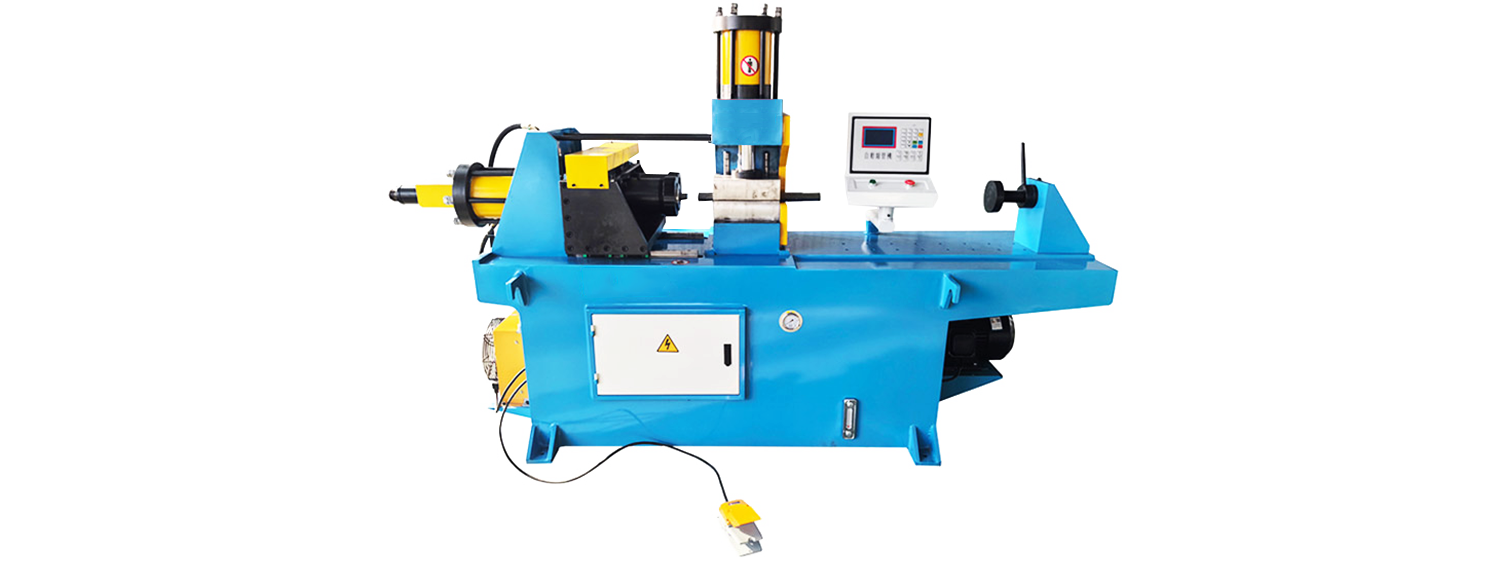

Main technical precision:
Accuracy of shrinking and expanding tubes: diameter accuracy ±0.15mm:coaxiality meets drawing requirements; length accuracy≦0.25mm.

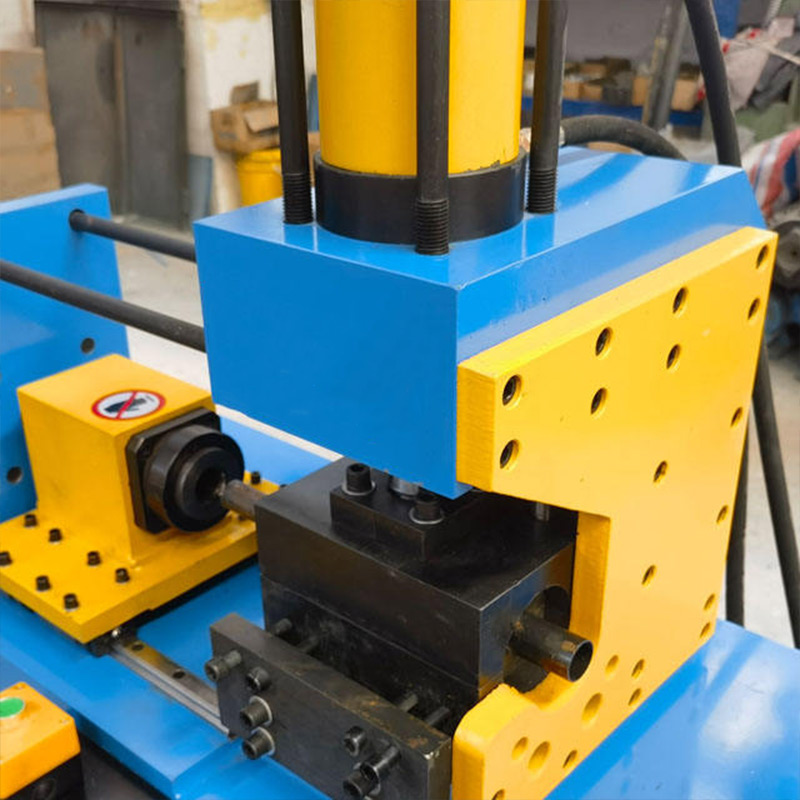

Workpiece clamping device: hydraulic clamp, full circumference clamping, with clamp single action function. Clamping is reliable and safe.

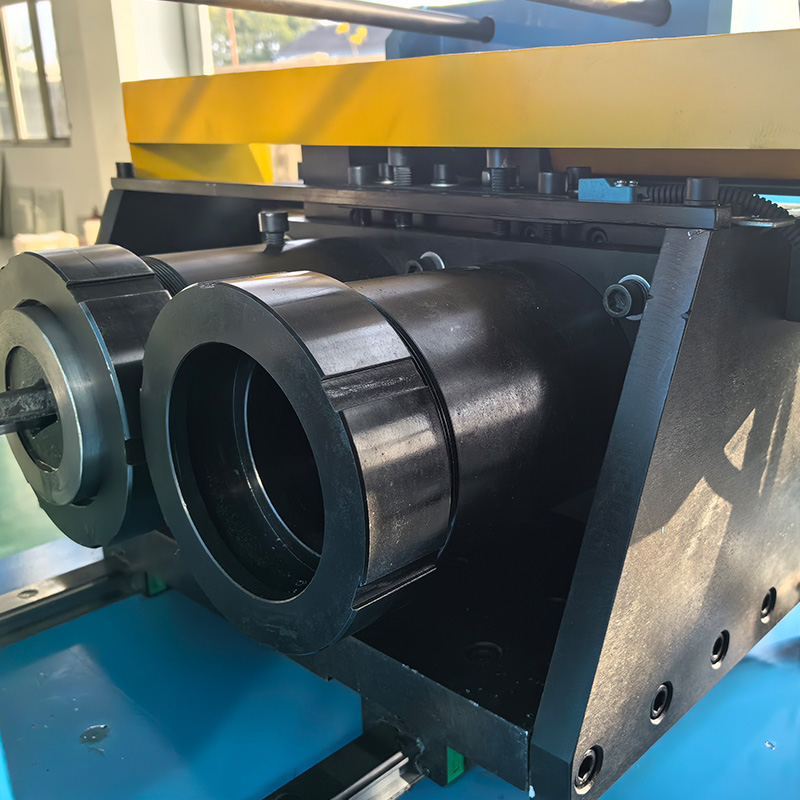

Mold changing method of the workpiece: fast and accurate positioning: manually lock the mold after it is in place.
Cooling system: HT0608 oil pressure cooler
This machine has a circulating cooling device, no external water source is needed. The cooling effect is good at normal room temperature, ensuring that the oil temperature of the hydraulic system is controlled at ≤60°C during the continuous operation of the system
Electrical parts:
Adopt SL6-03 single-chip microcomputer control system. No fault message display function. Electrical parts: relays, push button switches, etc. are Chint or designated brands.
Reasonable structural design, mature, high reliability, easy management, operation and maintenance, and easy purchase and replacement of damaged parts. The overall rigidity is good, the performance is stable, the efficiency is high, the precision and various performance indicators are all better than the national standard of this model, the cost performance is high, and it is advanced in this industry. Mold replacement is convenient, fast and accurate in positioning. safety standard:
The safety standard of this machine tool shall comply with the relevant national general technical conditions for safety protection. Conform to relevant national environmental protection standards.
Equipped with advanced control systems and precision tooling, Haolilai Machinery ensures stable bending angles, smooth curves, and minimal deformation, meeting strict industrial standards.

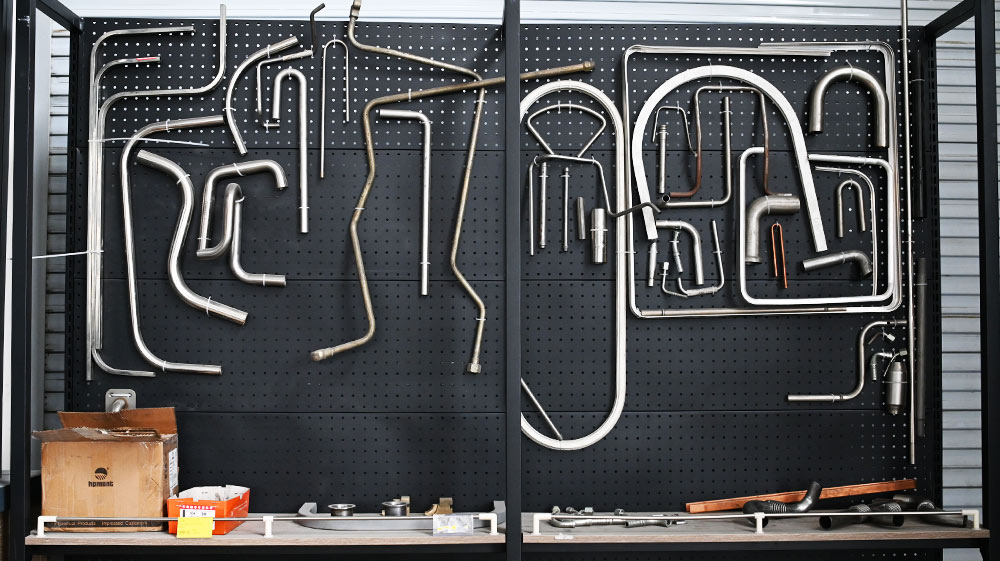

Our pipe bending machines can process stainless steel, carbon steel, aluminum, copper, and more. Flexible configurations allow handling different diameters and thicknesses for diverse production needs.
With durable components and optimized mechanical structure, our machines provide reliable operation, high efficiency, and reduced downtime, helping improve your productivity.
We offer customized machine designs, tooling, and technical support based on your pipe specifications and production requirements, ensuring the best solution for your business.
| Main Cylinder Inner Diameter | 125 mm |
| Pinch Cylinder Inner Diameter | 90 mm |
| Master Cylinder Stroke Length | 150 mm |
| Pinch Cylinder Stroke Length | 100 mm |
| Pinch Cylinder Pressure | 12 – 18 MPa |
| Master Cylinder Pressure | 13 MPa |
| Oil Pump Capacity | 19 L |
| Motor Power | 4.5 kW |
| Control System | SL6-03 |
● Transportation Industry: Locomotive, automobile, and bicycle exhaust pipes, brake and oil supply pipes, steering gears, air conditioning pipes, seats, balancers, bumpers, window frames, handlebars, and structural frames.
● Furniture Industry: Indoor and outdoor tables and chairs, office desks and chairs, shelves, beds, and other furniture components.
● Leisure Industry: Fitness equipment, strollers, amusement park facilities, and recreational products.
● Heating and Cooling Industry: Water heaters, electric heaters, gas stoves, refrigerators, air conditioners, and related piping.
● Heavy Industry: Boiler piping, power plants, chemical plants, diesel engines, shipbuilding, and other industrial piping systems.
● Other Industries: Household goods, rehabilitation and medical equipment, sanitary equipment, construction and decoration, agriculture, and aviation applications.

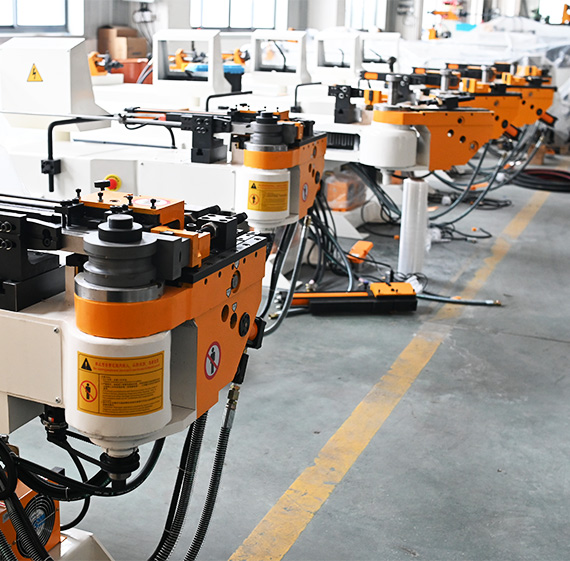

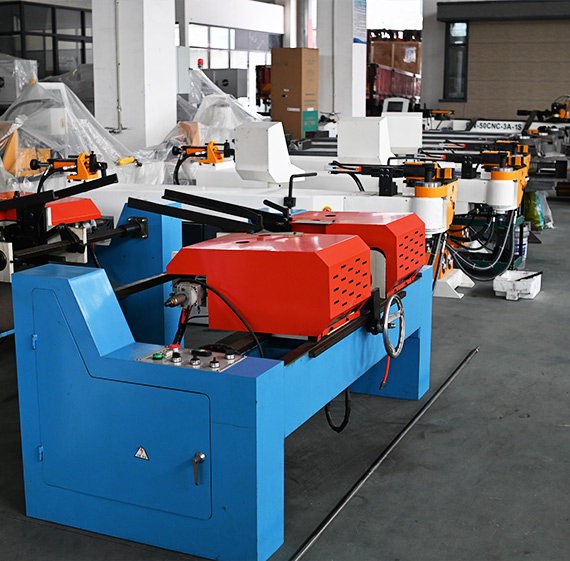

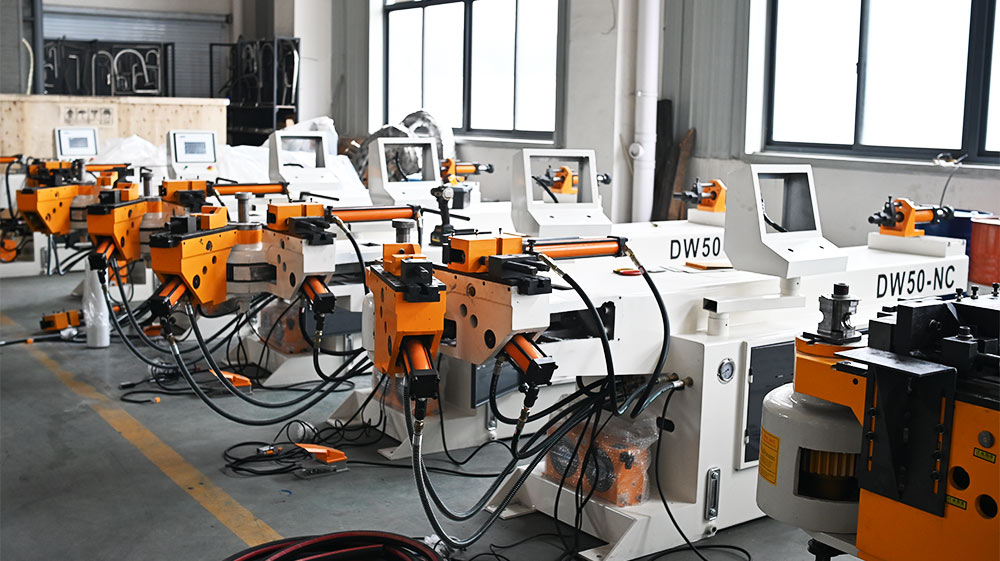

Welcome to our production workshop, which is equipped with advanced CNC machining equipment, fully automatic welding line and efficient assembly line to fully guarantee the precision and quality of each pipe bender. Standardised production processes, clean and orderly working environment and strict quality inspection system is the solid backing for the stability and reliability of our products. Through the real scene display, let you feel our manufacturing strength and professional attitude.
